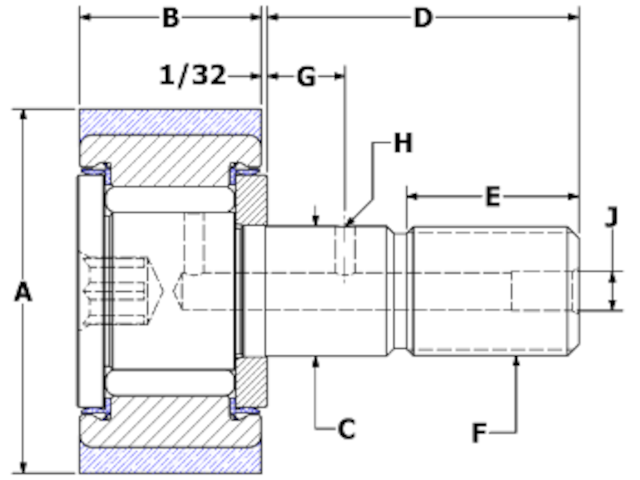

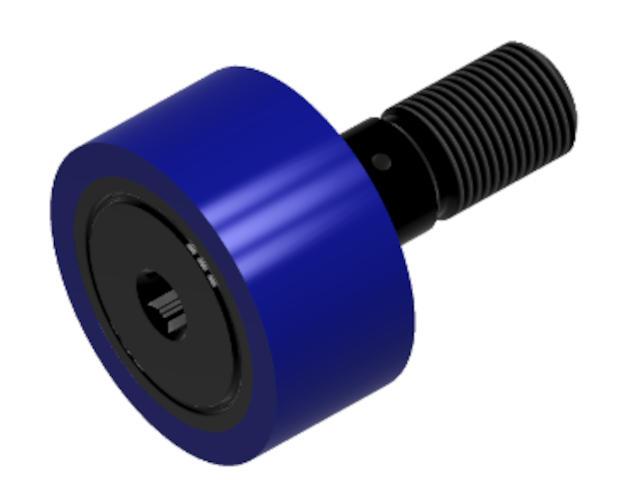

CRT-SB -Standard Urethane Cam Follower
| SKU | Hex Size | Lube Fitting Size | M.E.T. | Min. Boss Diameter | Oil Hole Center | Oil Hole Diameter | Roller O.D. | Roller Width | Stud Diameter | Stud Length | Thread Class 2A |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CRT-24-SB | 1/8 | ~ | 1/4 | 19/64 | ~ | ~ | 0.750 | 0.375 | 0.190 | 0.625 | 10-32 |
| CRT-48-SB | 1/4 | 3/16 | 5/8 | 49/64 | 5/16 | 3/32 | 1.500 | 0.750 | 0.500 | 1.250 | 1/2-20 |
| CRT-64-SB | 5/16 | 3/16 | 7/8 | 1 3/64 | 7/16 | 3/32 | 2.000 | 1.000 | 0.750 | 1.750 | 3/4-16 |
| CRT-56-SB | 5/16 | 3/16 | 3/4 | 57/64 | 3/8 | 3/32 | 1.750 | 0.875 | 0.625 | 1.500 | 5/8-18 |
| CRT-32-SB | 3/16 | 3/16 | 3/8 | 1/2 | 1/4 | 3/32 | 1.000 | 0.500 | 0.375 | 0.875 | 3/8-24 |
| CRT-40-SB | 1/4 | 3/16 | 1/2 | 41/64 | 1/4 | 3/32 | 1.250 | 0.625 | 0.438 | 1.000 | 7/16-20 |
| CRT-72-SB | 7/16 | 3/16 | 1 | 1 13/64 | 1/2 | 1/8 | 2.250 | 1.250 | 0.875 | 2.000 | 7/8-14 |
