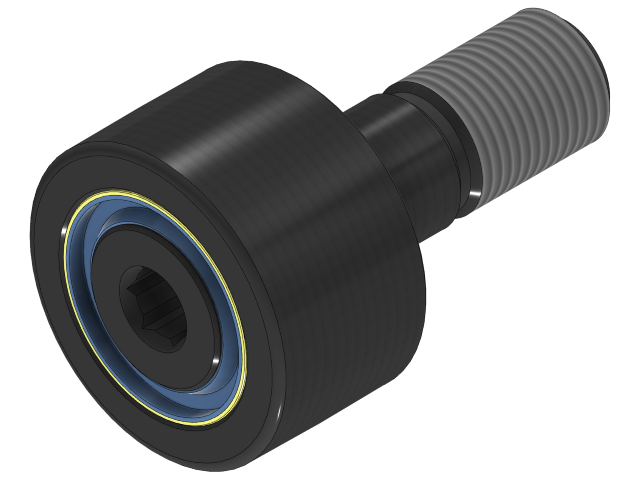

CDR-400-S
Standard stainless crowned hexed sealed cam follwer
$594.91
CDR-400-S

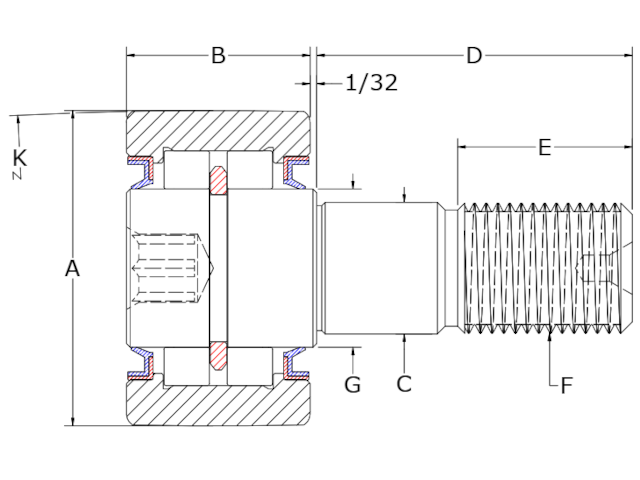

Specifications
| Attribute | Callout | Value |
|---|---|---|
| Roller O.D. | A | 4.000 in |
| Roller Width | B | 2.250 in |
| Stud Diameter | C | 1.500 in |
| Stud Length | D | 3.500 in |
| M.E.T. | E | 1 1/2 in |
| Thread Class 2A | F | 1 1/2-14 |
| Shoulder Diameter | G | 2-1/2 in |
| Hex Size | X | 3/4 in |
| Approx Weight [lbs] | 7.44 | |
| Basic Dynamic Rating | 45,600 lbf | |
| Basic Dynamic Rating (lbf) | 45,600 | |
| Limiting Speed | 2,600 RPM | |
| Limiting Speed (RPM) | 2,600 | |
| Max Static Capacity | 68,000 lbf | |
| Max Static Capacity (lbf) | 68,000 | |
| Mounting Bore | 1.500 in | |
| Torque (in-lb) | 3,000 in |
Custom Application
Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information.
